MICROSTAR L2-P-2NCL
Have one to sell?
ConditionNew
New
MICROSTAR, developed with advanced technology, provides stabilized dimensions, coordinate accuracy, and fine surface finishing that is required to complete HDD, IT and automotive parts.

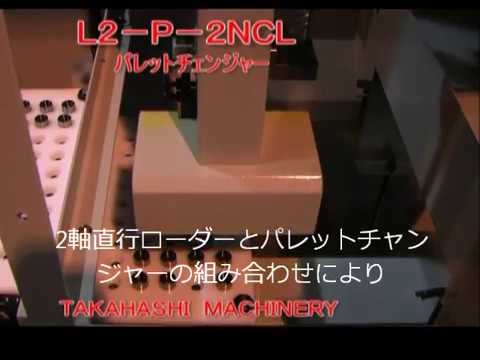

The originally designed 2-axis gantry loader equipped on the L2 allows stable and consistent operation.
It is also possible to install a driven tool unit and perform milling processing.
Max. chuck size 4 inch
Type Gang type
Max. turnable O.D. φ100（3.9） mm(in)
Travel distance X:220(8.6) Z:180(7.0) mm(in)
Rapid feed rate X:12(472) Z:16(629) mm/min(IPM)
Max. spindle speed 8000 min-1
Spindle motor power 2.2/1.5(2.9/2.0) Built-in motor kW(HP)
Floor space(W x D) 1,760(69.2) x 1.295(50.9) mm(in)
Weight 1600 kg
