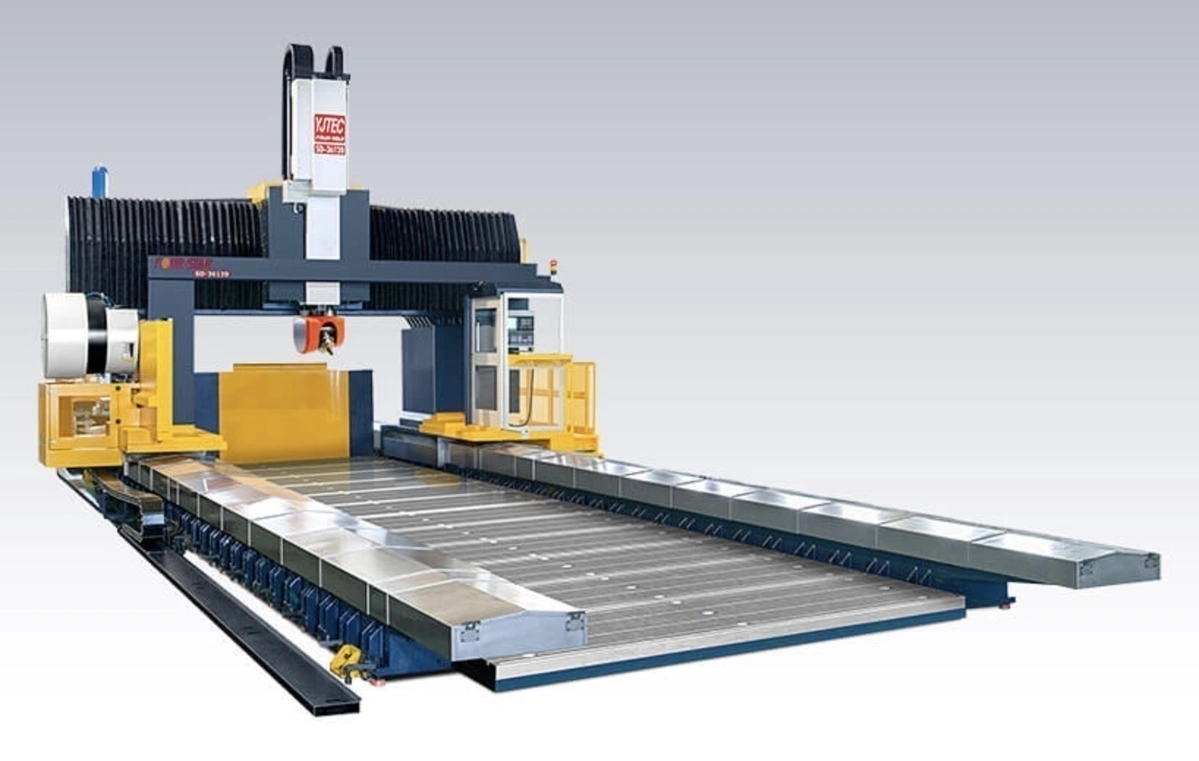

FOUR STAR SD-54

Description

SD SLIDING DOUBLE COLUMNS MACHINING CENTER

Standard Accessories
FANUC 0iMF + 10.4"LCD
Spindle and Gear-box cooler
Spindle air blast
Cutting coolant system
Auto lubrication system
Rigid tapping
Electric cabinet heat exchanger
Program end alarm lamp
Ethernet/USB/RS232 interface
GTP 2G250 H/L gearbox
Air/Water cleaning equipment
Twin spiral type chip remover
Steel belt chip conveyor with cart
Working lamp & Tool kit
Operator/Maintenance manual
X axis steel telescopic cover
Y axis JAVARA cover
Arm type ATC with tool magazine
ATC auto door
Foot switch for tool away
Leveling screw + foundation bolt
X axis rack-pinion-syn. servo control with two linear scales (X ≧ 5m)
Y axis rack-pinion control with Linear scale (SD(W)-48 & up, GM-45 & up)
W axis two linear scales (for SDW)
Mobile control room (for SD/SDW)
Toggle control panel (for HRP, HDT)

Optional Accessories
Twin gate/Twin bridge
SDW type (W Travel 1M~2M)
Siemens, Heidenhain Controller
30/37KW + ZF 2K300 (4500rpm)
X, Y, Z, W axis linear scale
CTS 40~70 bars (for main spindle)
Tool length measurement
Auto work piece measurement
CNC rotary (index) table
Y axis steel telescopic cover
Transformer
Oil skimmer
High speed direct spindle motor (for die and mold)
Wide range spindle motor
Heavy duty RAM 550mm x 550mm (4 guideways)
Heavy duty RAM 650mm x 650mm (4 guideways)
90° milling head (Auto, Semi auto, Manual)
Extension head (Auto, Manual)
90° extension milling head (Auto, Manual)
AC swiveling head (Auto, Manual)
AHC system (for auto head)
Five/Four axis Simultaneous head (TRAMEC)
Five face milling head (Fixed type)
Other Specific customerization
