FOUR STAR FDW-28

Description

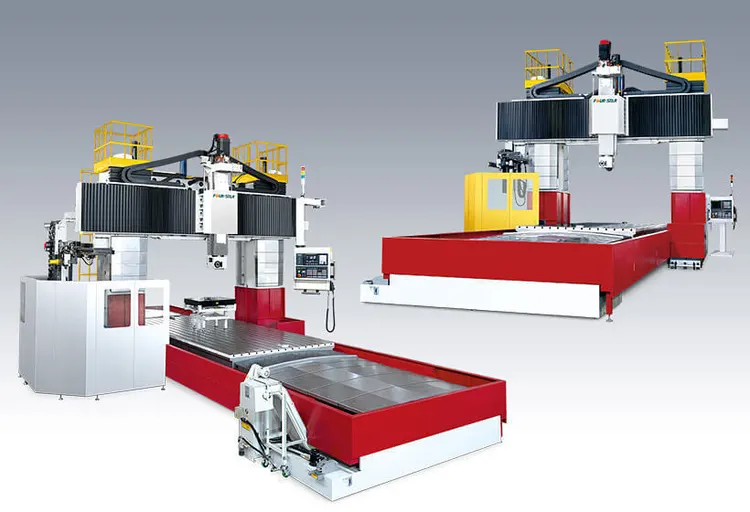

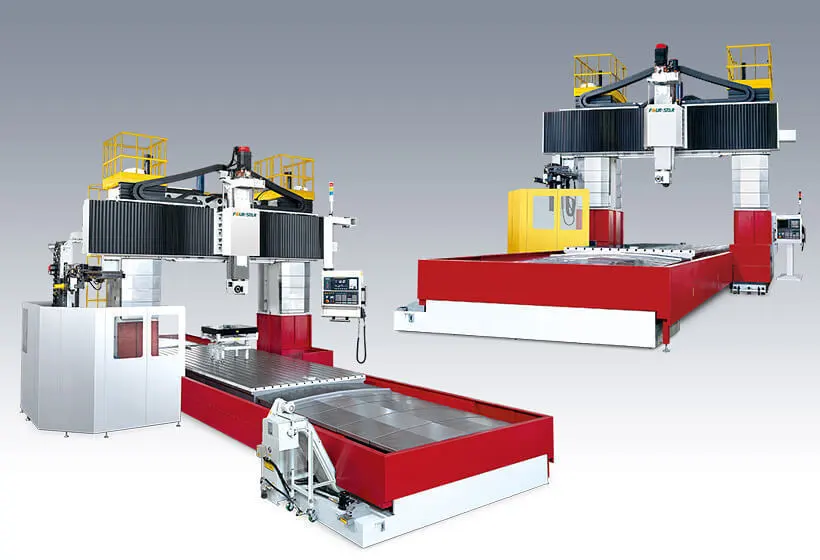

FDW FIXED DOUBLE COLUMNS MACHINING CENTER

Moving-Crossrail (W-travel)

Standard Accessories
FANUC 0iMF + 10.4"LCD
Spindle cooler
Spindle air blast
N2 Counter balance
GTP 2G250 H/L gearbox
Independent auto lubrication system
Program end alarm lamp
Rigid tapping
Electric cabinet heat exchanger
USB/RS232/hinet interface
Coolant system
Twin spirl type chip remover
Metal belt chip conveyor with cart
Cam type ATC 24pcs(FD14~FD24A)
Chain type ATC 32pcs(FD28~FD42, FDW)
Semi-enclousure splash guard
(FD18~FD24A)
Open type splash guard
(FD28~FD42, FDW)
ATC auto door
Foot switch for tool away
Working lamp
Leveling screw + foundation bolts
Tool kit & Operator’s manual
Air/water cleaning equipment
W axis linear scales (2 pcs)

Optional Accessories
Mitsubishi/Siemens/Heidenhain
Direct drive spindle(8000~15000rpm)
Buit-in Spindle(15000~24000rpm)
Spindle with CTS
Gearbox with CTS
90° head(Auto, Semi, Manual)
Extend head (Auto, Manual)
AC swiveling head (Auto, Manual)
AHC system (for auto head)
Toggle head stand (for semi/manual head)
Five face head (Fixed type)
Universal head (Fixed type, Manual)
Y travel extend 650mm
Transformer
X, Y, Z axis linear scale
Tool length measurement
Auto work piece measurment
CNC rotary (index) table
Coolant thru tool holder device
Full enclosure splash guard
Oil skimmer
Power 30/37kW + GTP 2G300(4500rpm)
Heavy duty RAM 550 x 550(above FD-28)
Heavy duty RAM 650 x 650(above FD-42)
