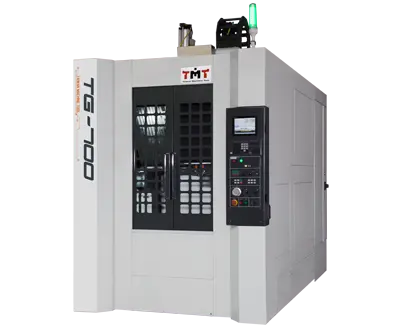

TG Series TG-700

Description

Meticulous Design is your best choice in precision finishing.
Multi-performance, while satisfy different machining demand.
Work table can be mounted with APC, 5 axes or fix table.

High cutting rigidity with gantry type structure design.
ATC installed at the center of basement to reduce the width of the machine to save the walking steps for loading & unloading workpiece.
Without carrying ATC system on moving parts to make it lighter, make sure cutting without vibration.
Cutting area isolation to ensure the transmission system lif longer and easier to install optical scales.
Y axis linear guide with chromate finish and anti-rusty treatment, with two pieces wipers to prevent chips to affect accuracy.

Direct-drive spindle

BT-40/HSK 50A/HSK 63A

Direct drive transmission, no noise, vibration and backlash problems.
Spindle air curtain, prevents moisture and chips going into the spindle.
HSK tool holder with two faces contact thus high rigidity and precision when install high-speed spindle.
HSK A63-20000 rpm built-in spindle with high efficiency chiller system and mist lubrication system to apply longer life, low heat and accuracy.

Servo Drive Magazine

Fast and stability (C-C 4 sec.). ATC install at the center of basement to reduce the width of the machine and save the walking steps to loading and unloading workpiece.

High Loading Capacity Fix Table

The working table can load up to 700 kgs.
Table size achieves 1280mm, good at machining long workpiece.
Install rotary table without any wasting space almost full travel could be used.
Powerful Single/Double C-axis Rotary Table
Good at multi-faces machining to save working hours on ATC time.
Integrated radial bearing, with less part to reduce the relative cumulative difference.
High positioning and repeatability accuracy.
Extreme Small Floor Space, Auto Pallet Changer Reduce workpiece loading time and High Utilization rate!

Auto Pallet Change System

The working table adopted the cam type 3-pieces coupling system. High speed 180∘rotary pallet change system (4 sec.).

Spindle speed upgrade

Standard with directly drive spindle. Optional spindle speed with 12,000/15,000 and built-in type 20,000 rpm spindle.

Coolant Through Spindle

Coolant through spindle system can cool workpiece with fully effect to meet cutting needs for various materials.

ATLM w/Breakage Detection

Measure the tool length and diameter quickly, and make in-cycly tool breakage detection which can improve the efficiency of machine.

Optical Scale

The machine accuracy could be much improved with optical scale.

Rear Type Chip Conveyor

With rear type chip conveyor to improve the chip removal efficiency and convenience. Easy to clean and save the labor requirement.

X Axis Travel：700 mm
Y Axis Travel：450 mm
Z Axis Travel：420 mm
Spindle Taper：BT-40
