CNC Worm Gear Grinder
CNC Worm Gear Grinders

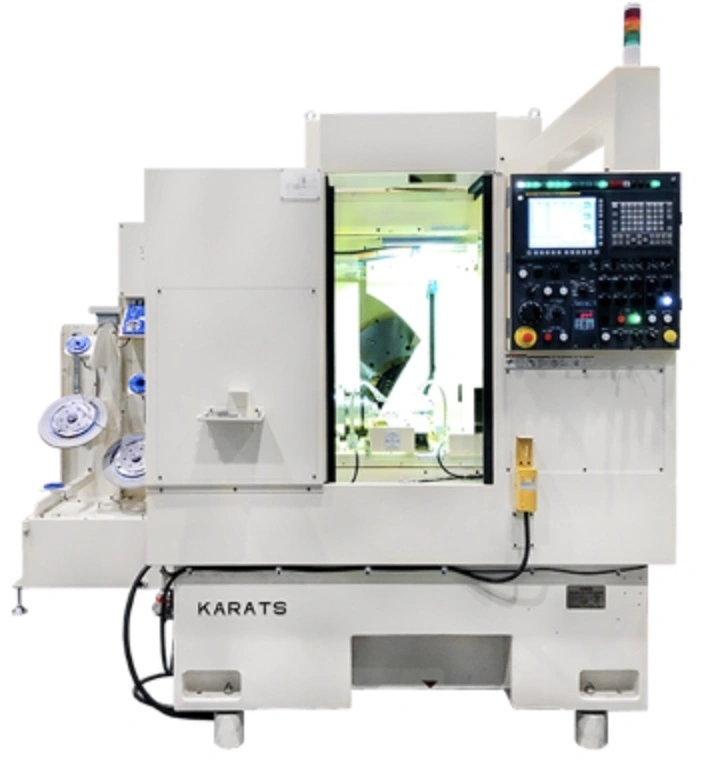

SWG-200N is a specially designed grinder
for worms, above all for EPS worms.
A complete flow from wheel truing and dressing to grinding is conducted in the shortest cycle time.
interfaces for changeover of jobs, changing of grinding cycles and conditions are built in.
This model can be used as a Thread Grinder.
Model SWG-200N
Max. dia. of worm gear mm 25
Max. module 1～3
Max. tooth width mm 100
Max. center distance mm 200
Number of start 1～3
Lead angle ° right 30°～(left 30°)
Grinding wheel dia. mm 280～355
Wheel rotation min-1 1,400～2,800
Wheel spindle motor
（Continuous rating） AC/kW 5.5
