New STYLE CNC 650 | CNC Lathes
Have one to sell?
ConditionNew
New
The STYLE 650 lathe guarantees quality, precision and efficiency for single pieces and small series. Wherever competitive performances have to be delivered with the production of single pieces and small series, STYLE CNC Machines offers unique advantages. Each CNC lathe from STYLE is unparalleled in its class and offers optimum flexibility for turning the most diverse products.
Only the best is in the STYLE control

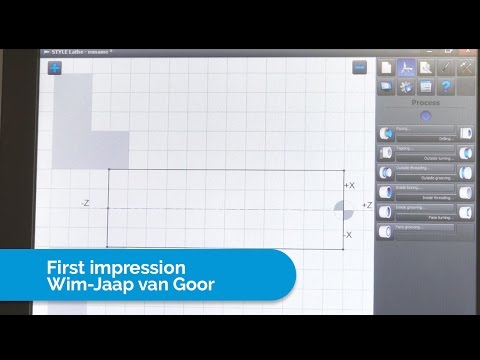

Each CNC lathe from STYLE CNC Machines is equipped with the intuitive control system developed by ourselves and is notable for its unique design. The STYLE Control offers the convenience and accessibility to be able to work with the machines with just a few hours of training, as well as extensive functionalities for the experienced machine operator. The STYLE 650 is a complete CNC machine suitable for customization thanks to the ergonomic design combined with the control.
Programming from the office
You can place all your programs that you want to run on a USB stick, but it is also possible to place the computer of the lathe in your network. This allows you to program your programs outside the machine.
Machine
Swing over bed mm 650
Swing over support mm 430
Distance between centers mm 1000 / 2000 / 3000 / 4000 / 5000
Bed width mm 450
Maximum weight between centers kg 1800
Main spindle
Main motor power (S6) kW 22 / 26 / 37
Spindle bore ø mm 105
Maximum spindle speed rpm 2000
Spindle taper A2-11
X- and Z- axis
Rapid movement m/min 8
Feed rate m/min 2
Tail stock
Quill ø mm 105
Quill stroke mm 225
Quill taper MT 5
Chuck size 12/16 inch
Max Turning dia 25.59 inch
Max Turning Length 39.37/78.74/118.11/157.48/196.85 inch
Bar Capacity 4.13 inch
General
Weight kg 4850 / 5850 / 6950 / 8050 / 9150
Machine dimensions (l/w/h) m 3.3 x 2.3 x 2.2 (1000)
4.3 x 2.3 x 2.2 (2000)
5.3 x 2.3 x 2.2 (3000)
6.3 x 2.3 x 2.2 (4000)
7.3 x 2.3 x 2.2 (5000)
