ConditionNew
New
The STYLE 750 is a real powerhouse for customization in single pieces and small series. This CNC lathe is available with a weighted tailstock so that stability is always guaranteed. The sturdy construction with a cast iron frame guarantees high reliability and optimal results. The STYLE 750 lathe offers you all desired flexibility for turning the most diverse products.

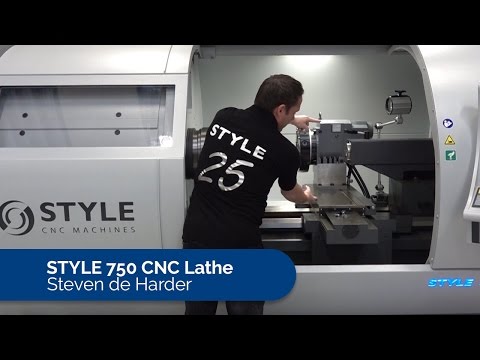

STYLE 750 CNC lathe, a powerhouse for demanding customization
Our R&D department develops every lathe to perfection. STYLE has been one of the most innovative Dutch manufacturers of CNC lathes and milling machines for 25 years. The unique STYLE Control is perfect for quick and easy production, you can get started with the STYLE 750 lathe within a day of training. The accessible CNC control is suitable for the novice operator and there are extensive functionalities for the experienced operator.
Programming from the office
You can place all your programs that you want to run on a USB stick, but it is also possible to place the computer of the lathe in your IT network. This allows you to program your programs outside the machine.
Machine
Swing over bed mm 750
Swing over support mm 530
Distance between centers mm 1000 / 2000 / 3000 / 4000 / 5000
Bed width mm 450
Maximum weight between centers kg 1800 / 23002
Main spindle
Main motor power (S6) kW 22 / 26 / 37
Spindle bore ø mm 105 / 155 / 180 / 230
Maximum spindle speed rpm 2000 (105) / 1500 (155) / 1250 (180) / 1000 (230)
Spindle taper A2-11 / A2-15
X- and Z- axis
Rapid movement m/min 8
Feed rate m/min 2
Tail stock
Quill ø mm 105 / 1252
Quill stroke mm 225
Quill taper MT 5 / 6
Chuck size 12/16/20 inch
Max Turning dia 29.53 inch
Max Turning Length 39.37/78.74/118.11/157.48/196.85 inch
Bar Capacity 4.13/6.10/7.09/.9.06 inch
General
Weight kg 4950 / 5950 / 7050 / 8150 / 9250
Machine dimensions (l/w/h) m 3.3 x 2.3 x 2.2 (1000)
4.3 x 2.3 x 2.2 (2000)
5.3 x 2.3 x 2.2 (3000)
6.3 x 2.3 x 2.2 (4000)
7.3 x 2.3 x 2.2 (5000)
