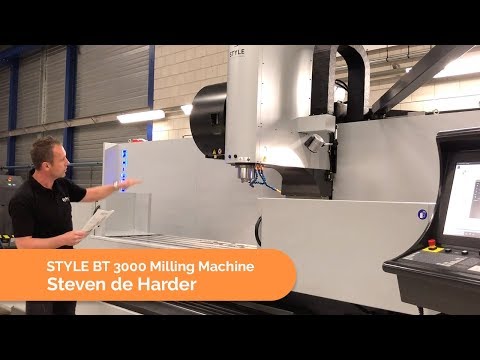

STYLE BT 3000 CNC milling machine
Have one to sell?
ConditionNew
New
The STYLE BT series consists of six models of milling machines, with a number of models available for a fully enclosed machine. The BT 3000 is the largest STYLE milling machine in the range and therefore the most versatile for the largest customization. These milling machines are designed and developed especially for the production of custom work and small series.
STYLE BT 3000 freesbank at a glance:
• Cast iron frame cast in one piece for high loads
• Accessible controls
• Stroke X / Y 3000 x 800/1100 mm
• Table load up to 3000 kg
• Maximum speed 12000 rpm
• Fully Dutch development and production
Machine
X-axis movement mm 3000
Y-axis movement mm 800
Z-axis movement mm 7001 / 8002
Bed width mm 1810
Dimensions work table mm 3200 x 800
Maximum table load kg 3000
Height work table mm 950
Distance spindle nose to table mm 120 – 8201
180 – 9802
Distance spindle nose to column mm 880
1 Spindle taper 40, 2 Spindle taper 50
Main spindle
Main motor power (S6) kW 22 / 26 / 37 / 45
Maximum spindle speed rpm 6000 – 120001
6000 – 80002
Spindle taper BT – SK/DIN698713 40 / 50
1 Spindle taper 40, 2 Spindle taper 50, 3 Choose for a BT or SK/DIN69871 spindle taper
X-, Y- and Z- axis
Rapid movement m/min 8
Feed rate m/min 4
Tool changer
Automatic tool changer # 24 (6 Choice of vertical / horizontal)
General
Weight kg 117001 / 140002
Machine dimensions (l/w/h) m 7.4 x 3.1 x 2.9
1 Spindle taper 40, 2 Spindle taper 50
