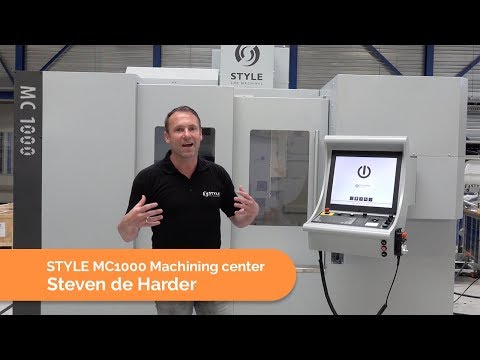

STYLE MC 1000 CNC milling machine, the machining center for the demanding machine tool

Description

The STYLE MC series are the right machining centers for the demanding machine operators. Machining centers are known for their wide working range and versatility when it comes to machining parts. These machining centers are suitable for single pieces and small series. The STYLE MC 1000 is a CNC controlled machine with a very accessible operation and always a good view of the drawing and product.

STYLE MC 1000 machining center at a glance:
• Class C3 prestressed ball screws prevent thermal expansion for high milling accuracy
• The X / Y / Z axis is driven directly by the axis motors, which ensures high positioning
• Stroke X-axis: 1000 mm, Stroke Y-axis: 560 mm, Stroke Z-axis: 550 mm
• Table size 1200 x 520 mm
• 12000 rpm at 22 kW

The machining center with very accessible controls
The STYLE MC 1000 machining center is equipped with a very stable cast iron frame with linear guides. The machine was built and designed by real Dutch machine builders. The machining center MC series is a line of closed, compact milling machines with an X stroke of 1000 mm respectively, a modern CNC machine for the production and flexible machining of parts. The control system offers novice machineries the accessibility to get started with just a few hours of training and the experienced operator the tools to make high-quality complex products.
Programming from the office
You can place all your programs that you want to mill on a USB stick, but it is also possible to place the computer of the milling machine in your network. This allows you to program your programs outside the machine.
