New O-M RT-915 | Vertical Boring Mills (incld VTL)
Have one to sell?
ConditionNew
New

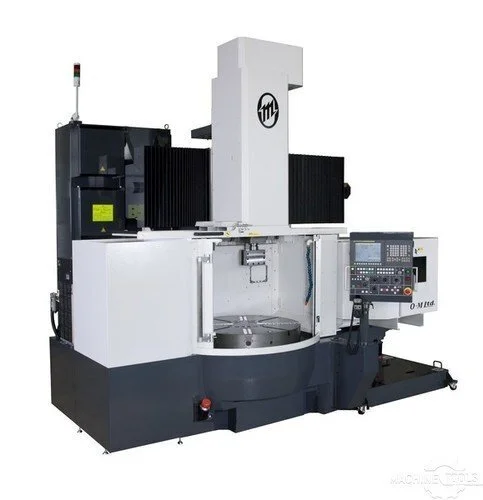

For sale is a New O-M RT-915 CNC Vertical Lathe, manufactured in 2023. This powerful Japanese Manufactured machine has a table diameter of 36.02" and supports a max. workpiece mass of 3300lbs. The operational capacity includes a max. swing of 43.31" and a max. turning diameter of 39.37". The machine utilizes a FANUC 0i-TF PLUS CONTROL & 36.02" independent 4-jaw for efficient operations. The unit comes equipped with an automatic tool changer that can accommodate 18 tools, a chip conveyor, chip bucket and a rigid ram type tool post. Plus, it features a fully enclosed chip cover for safe operations and a tool presetter (included in the first few models). The machine is environment-conscious and supports a high PSI coolant application. Interested buyers, who appreciate compact design, easy access to table, and a small footprint machine, are welcome to contact us for further details.
Table diameter 915mm（36.02"）
Max. turning diameter 1,000mm（39.37"）
No. of table speeds 2 x infinitely variable
Table speed range: Standard 4.2 ~ 420 rpm
Max. swing 1,100mm（43.31"）
Max. turning height 700mm（27.56"）
Max. mass of workpiece 1,500kg（3,300lbs）
Max. torque for turning 4,380N・m（3,231lbf・ft）
Max. cutting force 20,000N（4,400lbf）
Ram size
Tool Shank Size 32 x 32mm（1.25"x1.25"）
Number of table speed Range 1
Table speed for turning 4.2min-1 ～ 420min-1
Rapid feed speed（X axis）20,000mm（787.4"）/min
Rapid feed speed（Z axis）15,000mm（590.55"）/min
Cutting Feed Rate 0.01mm（0.0004"）/rev ～ 500mm（19.69"）/rev
Main motor AC 37/30KW（50/40HP）
Magazine capacity 18 pcs
Max. machine height 3,440mm（135.43"）
Machine dimension（width×depth） 3,682mm（144.96"）× 3,730mm（146.85"）
Total power capacity 60kVA
Mass of machine 13,100kg（28,880lb)
