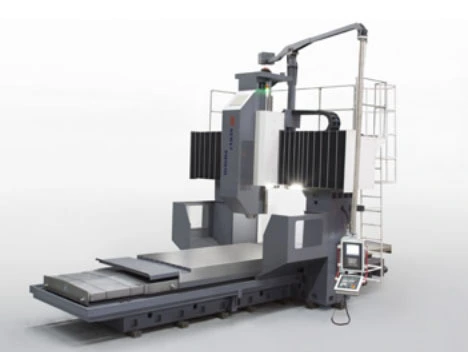

New NEWAY PM1220H | Gantry Machining Centers (incld. Bridge & Double Column)
Have one to sell?
ConditionNew
New
Item PM1220H unit
worktablesize 1250×2000 mm
49.21x78.74 inch
worktableload 5000 kg
11023.11 lb
worktable travel（X axis） 2200 mm
86.61 inch
travel（Y axis） 1750+250 mm
（ATC）
68.89+9.84（ATC） inch
ram travel（Z axis） 800 mm
31.5 inch
speed 40~6000 r/min
spindlemotor power 15/18.5 kW
system FANUC 0i-MD
Item PM1220H unit
worktablesize 1250×2000 mm
49.21x78.74 inch
worktableload 5000 kg
11023.11 lb
worktable travel（X axis） 2200 mm
86.61 inch
travel（Y axis） 1750+250 mm
（ATC）
68.89+9.84（ATC） inch
ram travel（Z axis） 800 mm
31.5 inch
speed 40~6000 r/min
spindlemotor power 15/18.5 kW
system FANUC 0i-MD
Imperial
| X | 2,200 mm |
| Y | 1,750 mm |
| Z | 800 mm |
| RPM | 60,000 RPM |
| Table-W | 1,250 mm |
| Table-L | 2,000 mm |
