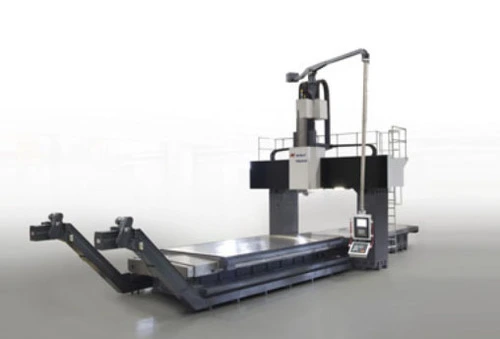

New NEWAY PM2560S | Gantry Machining Centers (incld. Bridge & Double Column)
Have one to sell?
ConditionNew
New
Item PM2560S unit
worktablesize 2500×6000 mm
98.42x236.22 inch
worktableload 30000 kg
66138.68 lb
worktable travel 6200 mm
（X axis） 244.09 inch
travel（Y axis） 3200+400 mm
（ATC）
125.98+15.74（ATC） inch
ram travel（Z axis） 1250 mm
49.21 inch
speed 20~2000 r/min
spindlemotor power 30/37 kW
system FANUC 0i-MD
weight 88000 kg
194006.79 lb
Item PM2560S unit
worktablesize 2500×6000 mm
98.42x236.22 inch
worktableload 30000 kg
66138.68 lb
worktable travel 6200 mm
（X axis） 244.09 inch
travel（Y axis） 3200+400 mm
（ATC）
125.98+15.74（ATC） inch
ram travel（Z axis） 1250 mm
49.21 inch
speed 20~2000 r/min
spindlemotor power 30/37 kW
system FANUC 0i-MD
weight 88000 kg
194006.79 lb
Imperial
| X | 244.09" |
| Y | 141.73" |
| Z | 49.213" |
| Table-W | 98.425" |
| Table-L | 236.22" |
