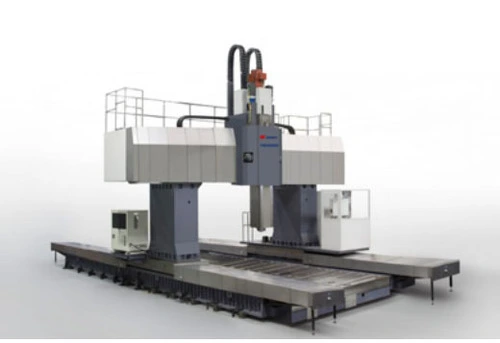

New NEWAY PM30120MS | Gantry Machining Centers (incld. Bridge & Double Column)

Have one to sell?
713-939-7263
sales@japanmachinetools.net
ConditionNew
Have one to sell?

Overview

Type:
Gantry Machining Centers (incld. Bridge & Double Column)
Manufacturer:
NEWAY
Model:
PM30120MS
Condition:
Build To Order
Status:
For Sale

Description

Item PM30120MS unit
worktablesize 3000×12000 mm
118.11x472.44 inch
worktableload 15000 kg/㎡
Gantry travel（X axis） 12500+500 mm
（head change）
492.12+19.68 inch
（head change）
saddle travel（Y axis） 4500+450（ATC） mm
177.16+17.71（ATC） inch
ram travel（Z axis） 1500 mm
59.05 inch
speed  20~2000 r/min
spindlemotor power 51/81 kW
X、Y、Z axisrapid traverse 2012-12-10 m/min
weight 190000 kg
418878.3 lb

X13,000 mm511.81"
Y5,000 mm196.85"
Z1,500 mm59.055"
RPM2,000 RPM2,000 RPM
Table-W3,000 mm118.11"
Table-L12,000 mm472.44"
